A VERSATILE HEAD,
FROM THINNING TO MEDIUM FINAL CUT.

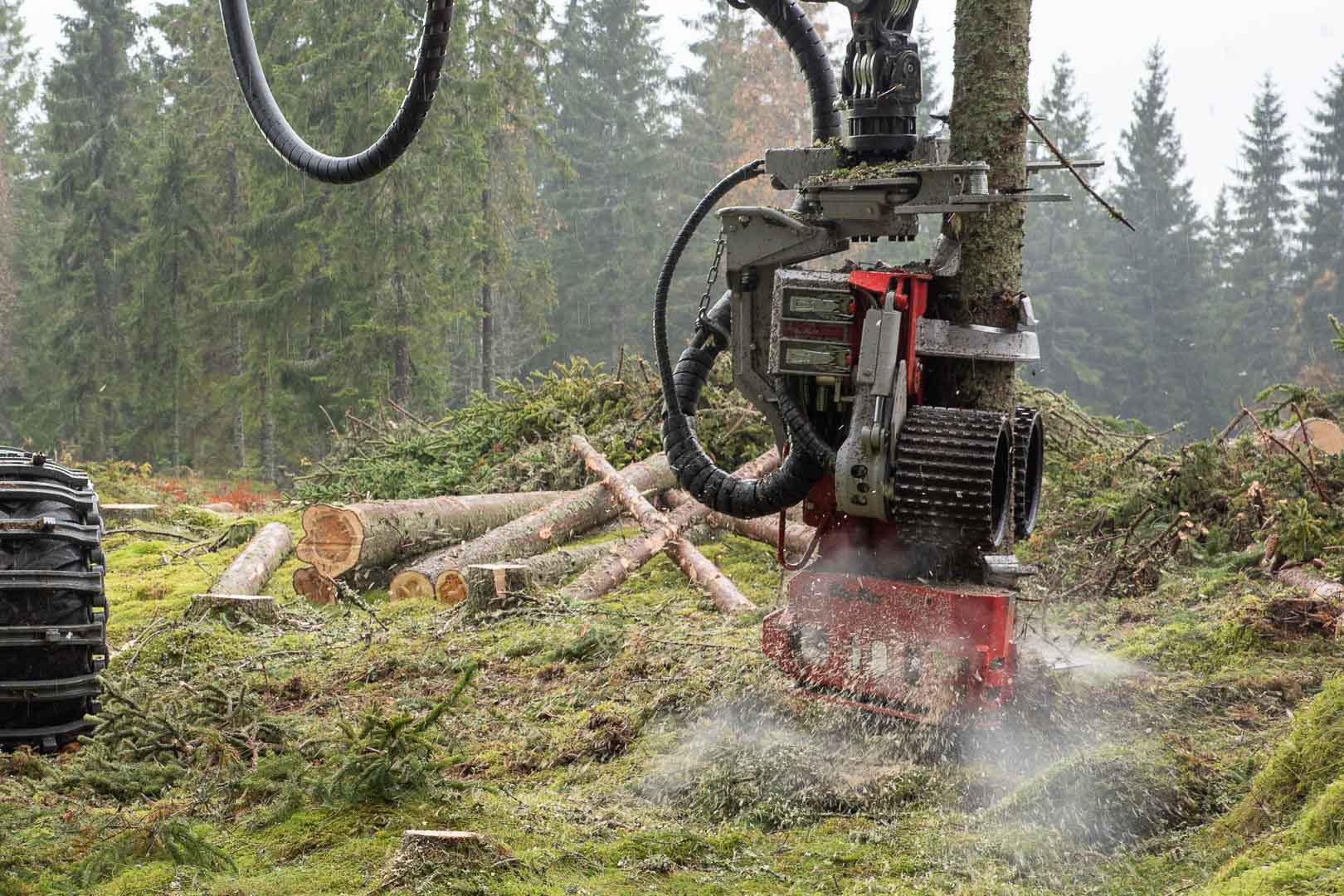

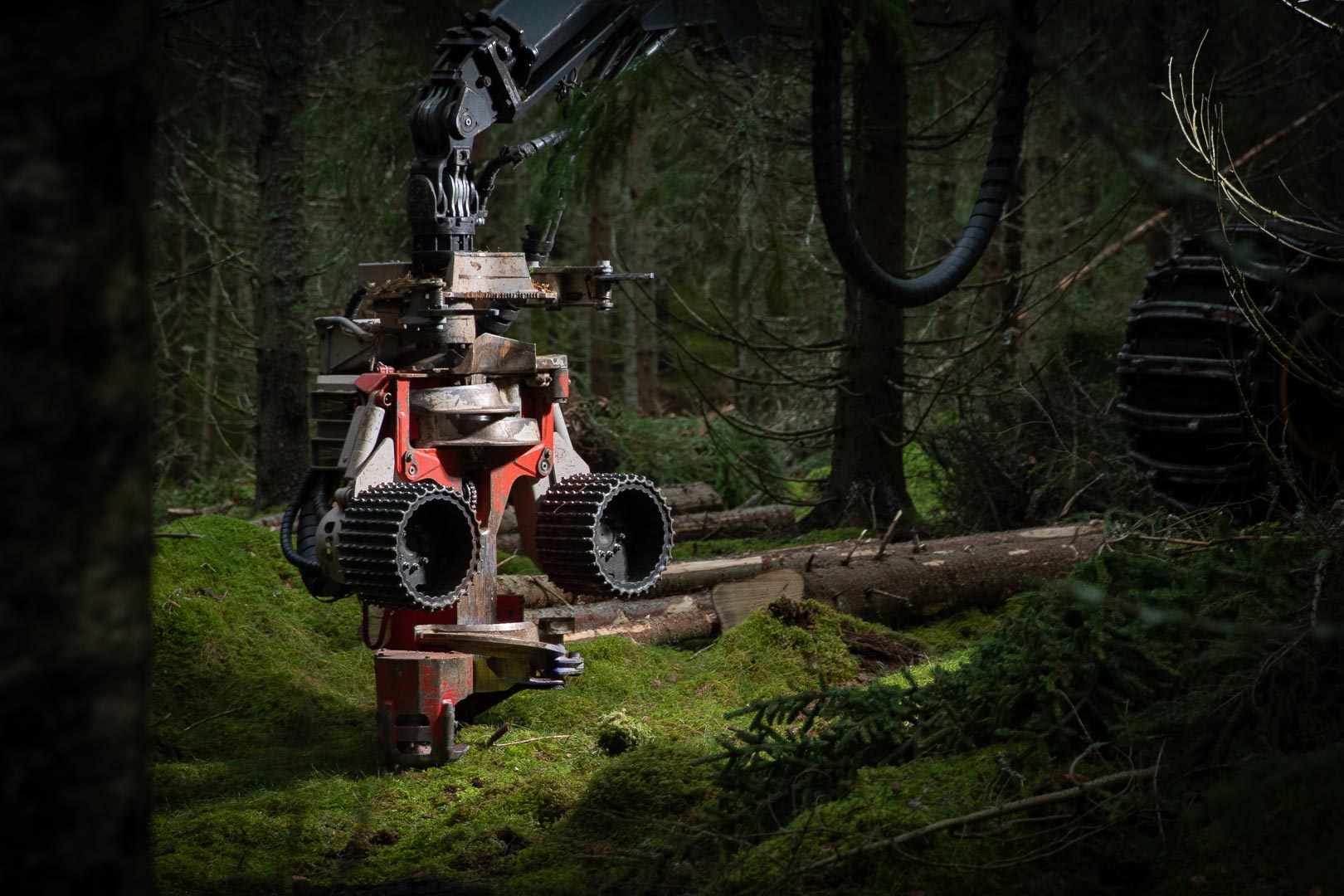

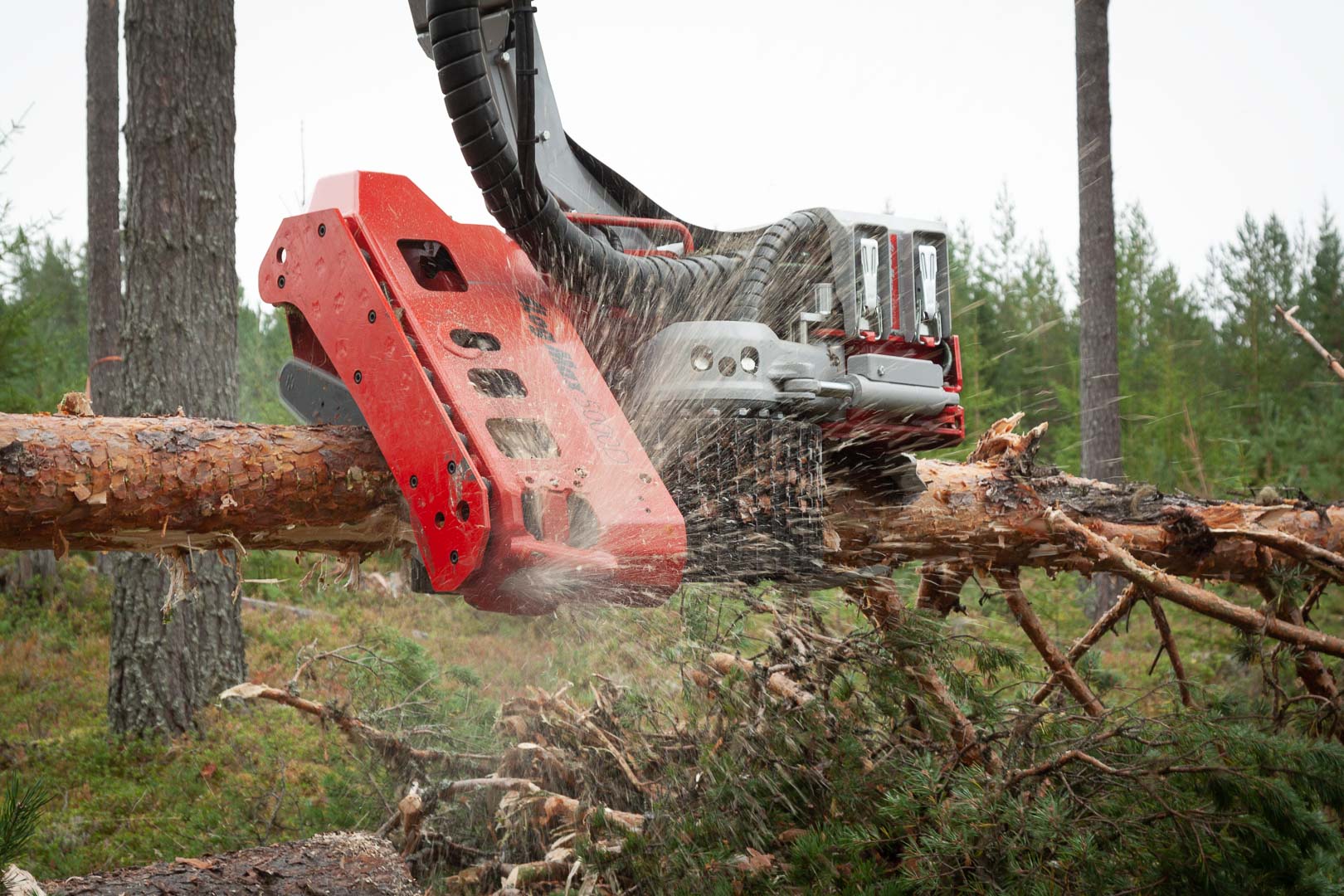

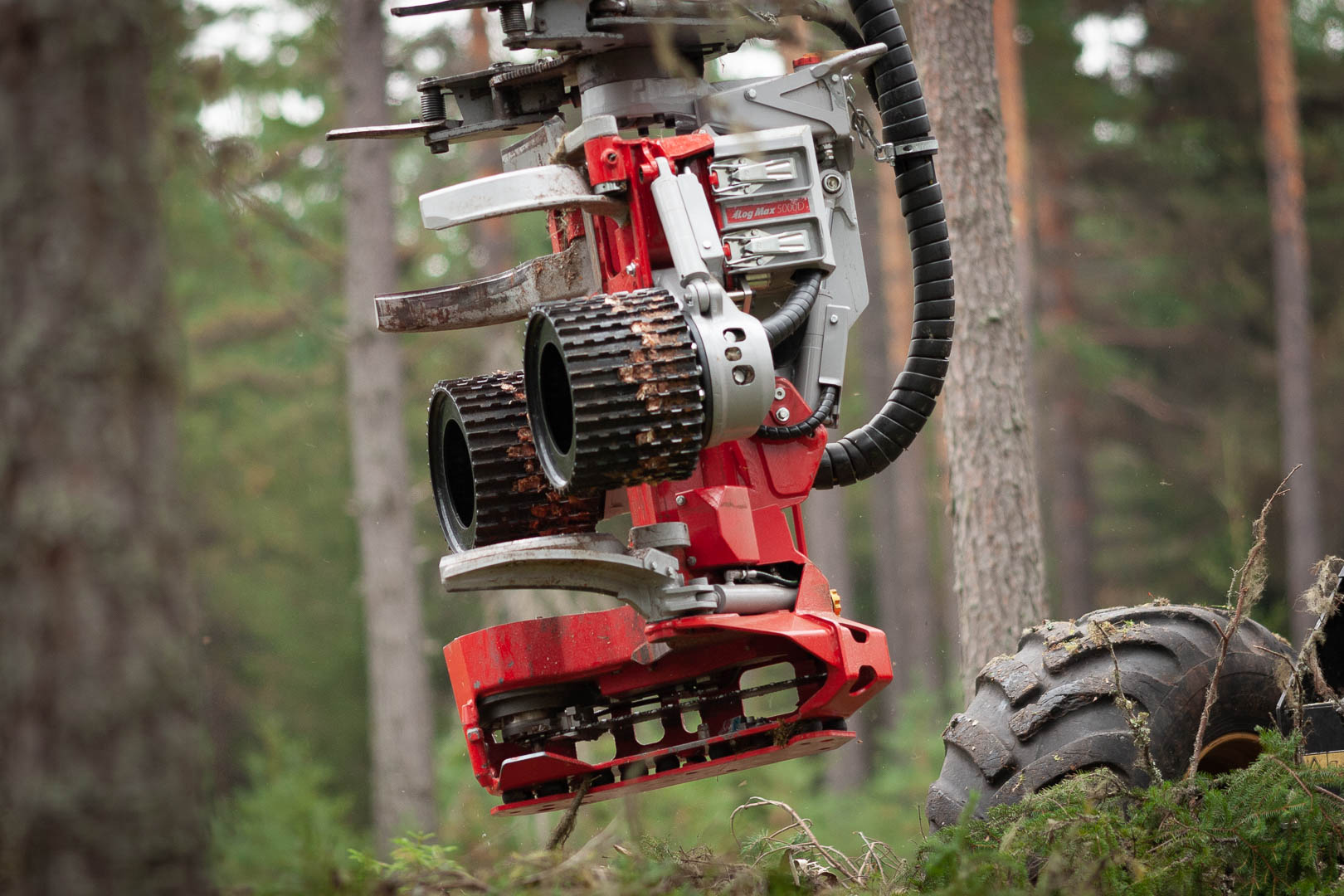

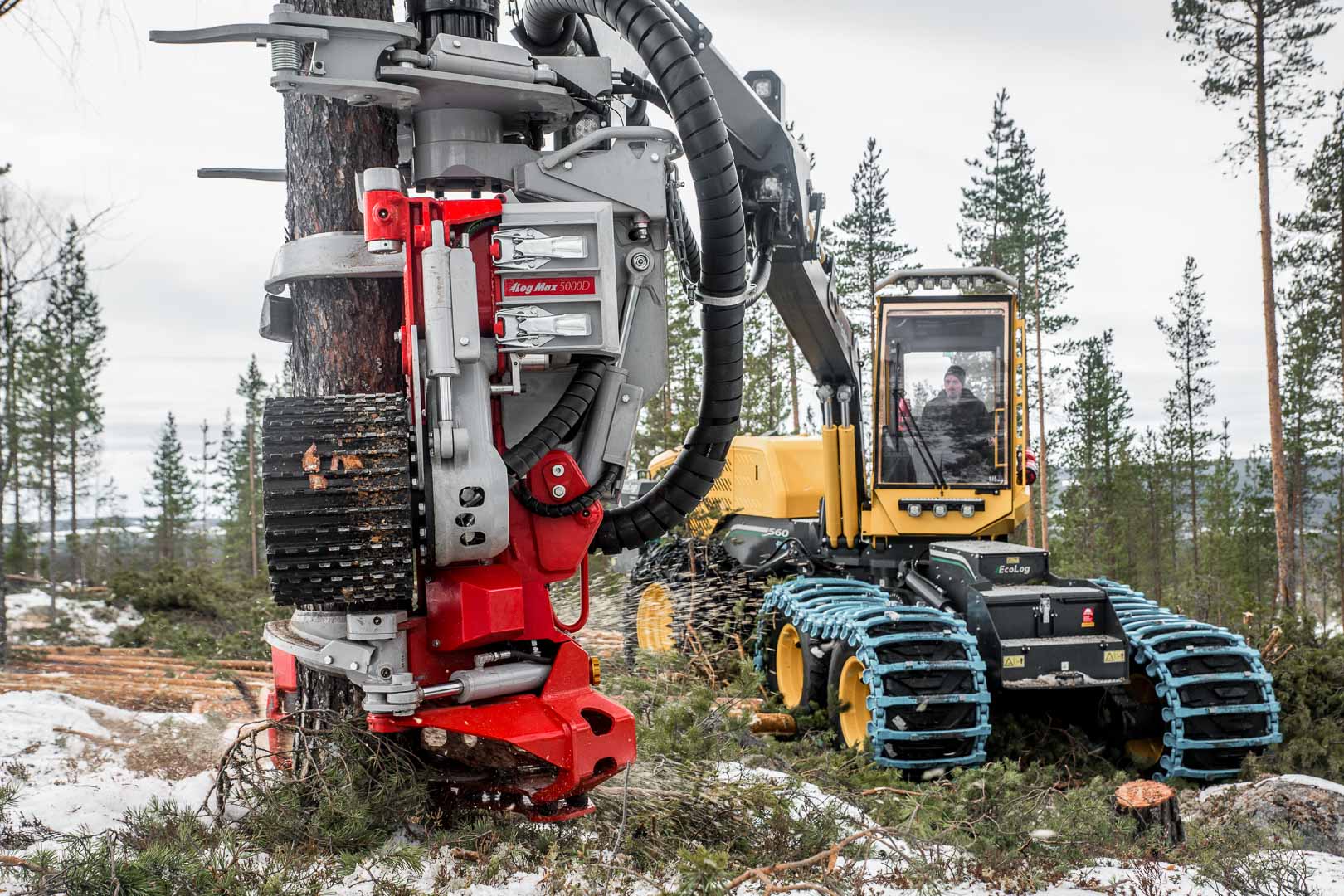

Log Max 5000D, the latest update of our previous big seller is designed to carry out a broad range of harvesting jobs, from thinning to medium final cut.

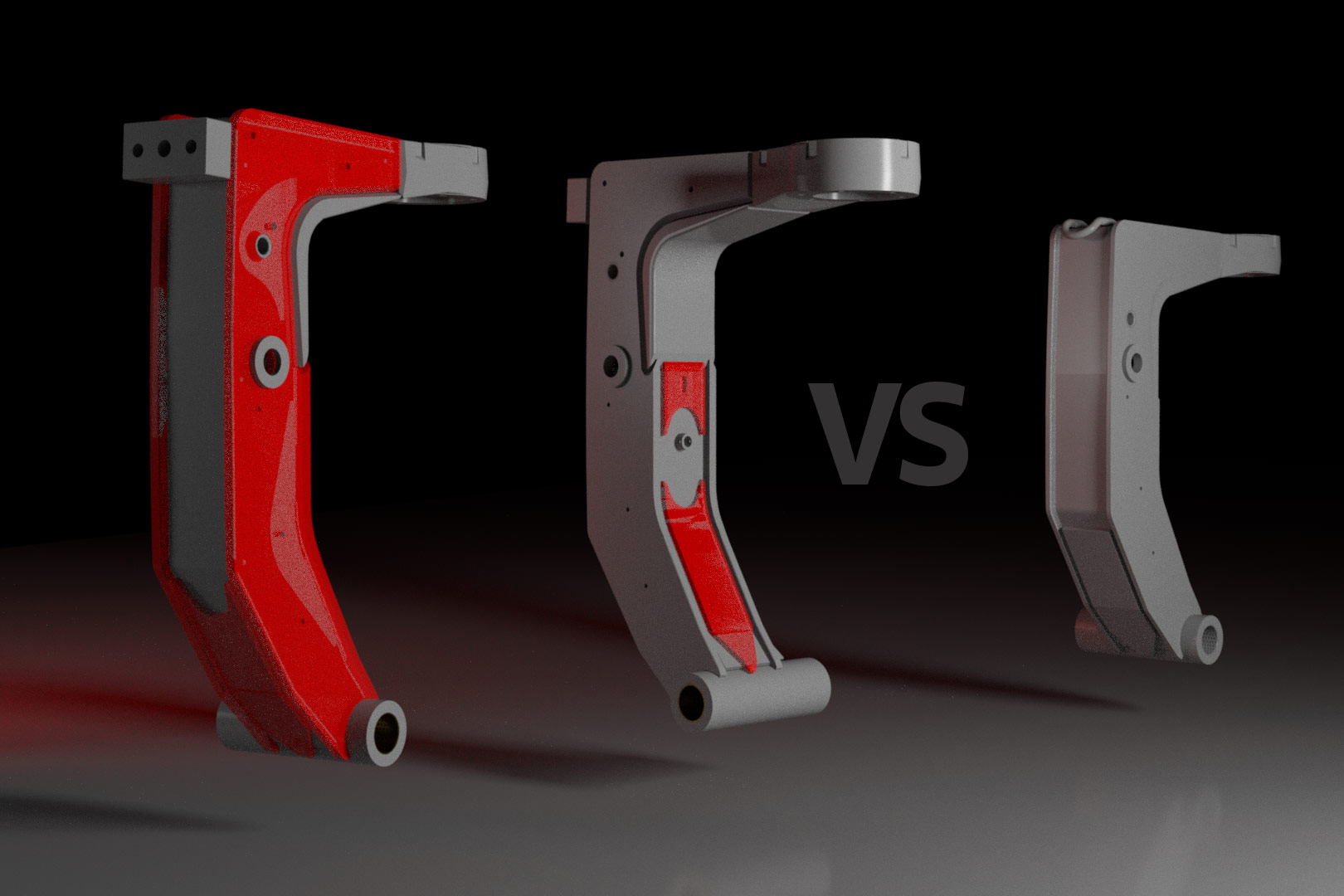

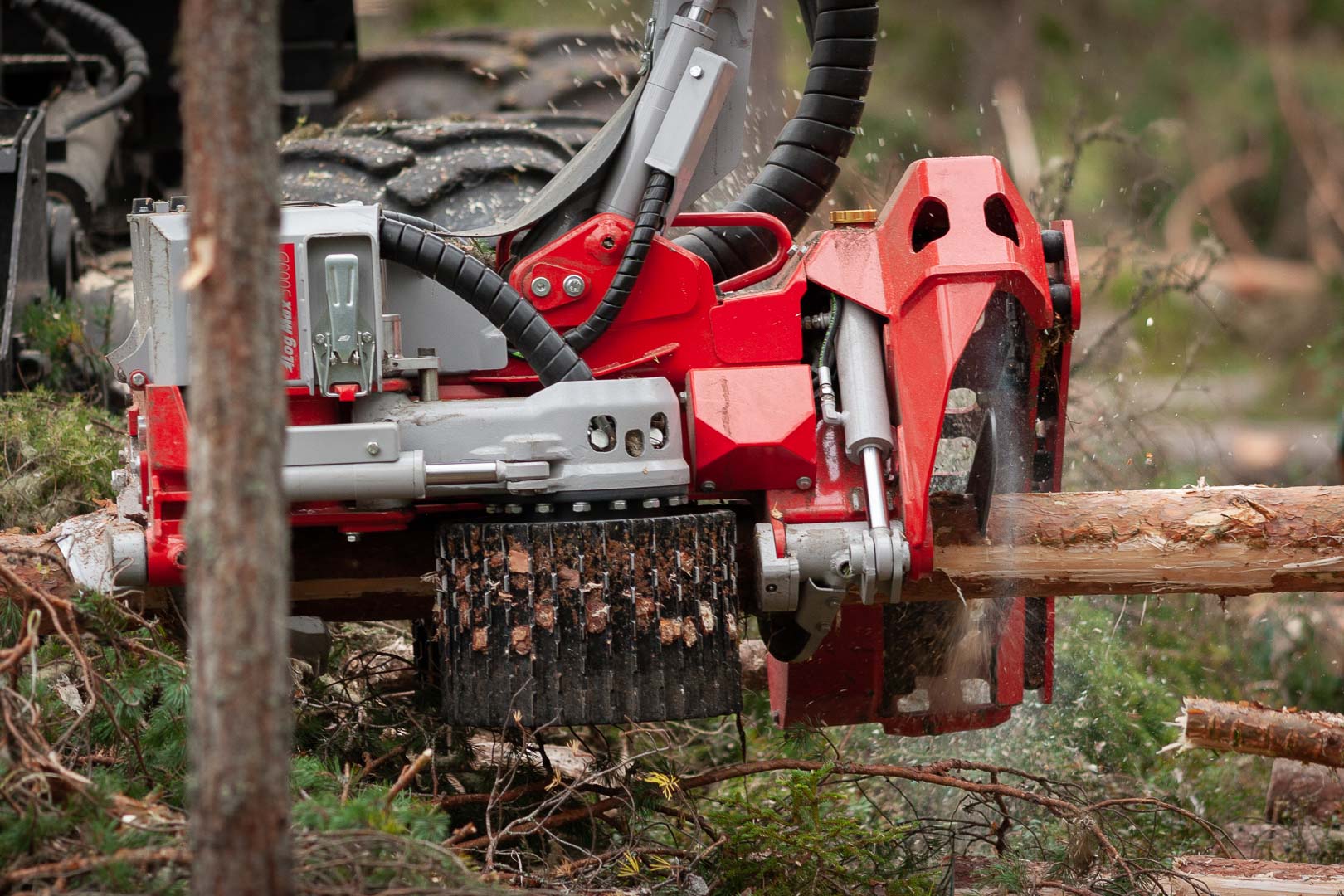

Well placed guards and heavy-duty covers protect internal components and hoses from damage. High performance saw hydraulics provide full flow to the bottom saw for fast cutting.
The patented top knife sensor allows the trunk to flow easily through the head reducing friction losses and providing higher delimbing force for a lower fuel consumption.
The 5000D can be equipped with an accumulation kit for multi-stemming and a Hultdins Supercut saw.

|
| Technical specifications |
Weight
Standard configuration *
|
946 kg |
* Incl. rotator, steel rollers and damped protection plate
|
Felling/Cutting
Max cut capacity, std/opt
Sound effect level
LWA
|
57/63 cm
110 dB(A) |
Feeding
|
Calc. feed force, std/opt
Calc. feed speed
|
21,3/25,6 kN
4,2/3,5 m/s |
Optional equipment
Accumulation Kit
Automatic chain tensioner (Supercut)
Color Marking
Eucalyptus Equipment
Field repair kit
Find end sensor
Hultdins Supercut
Snow Cover
|
Feed roller options
V-Steel
Steel
Eucalyptus
|
|
|
|
|
|
