RUGGED AND LIGHTWEIGHT
FOR THE FINAL CUT!

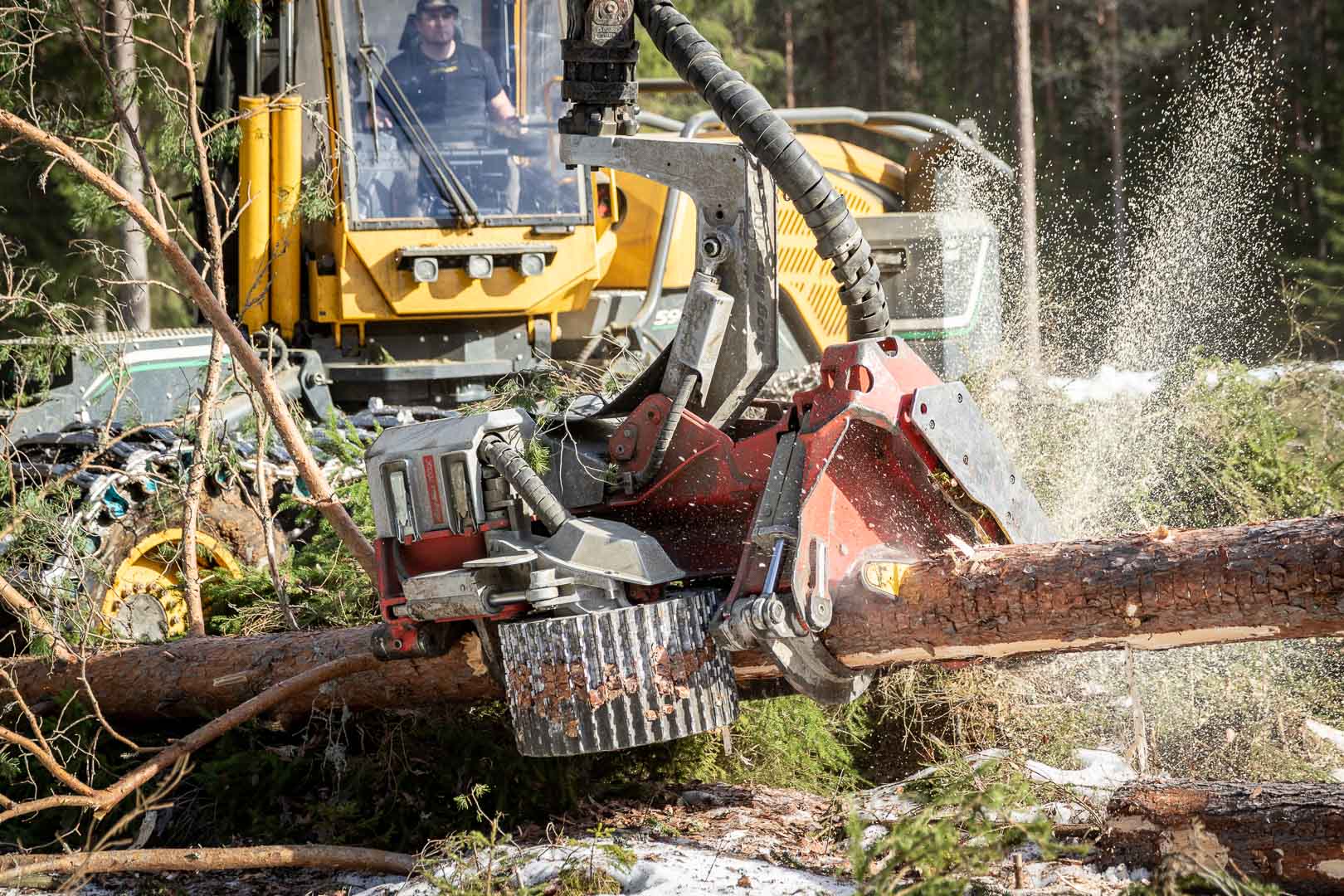

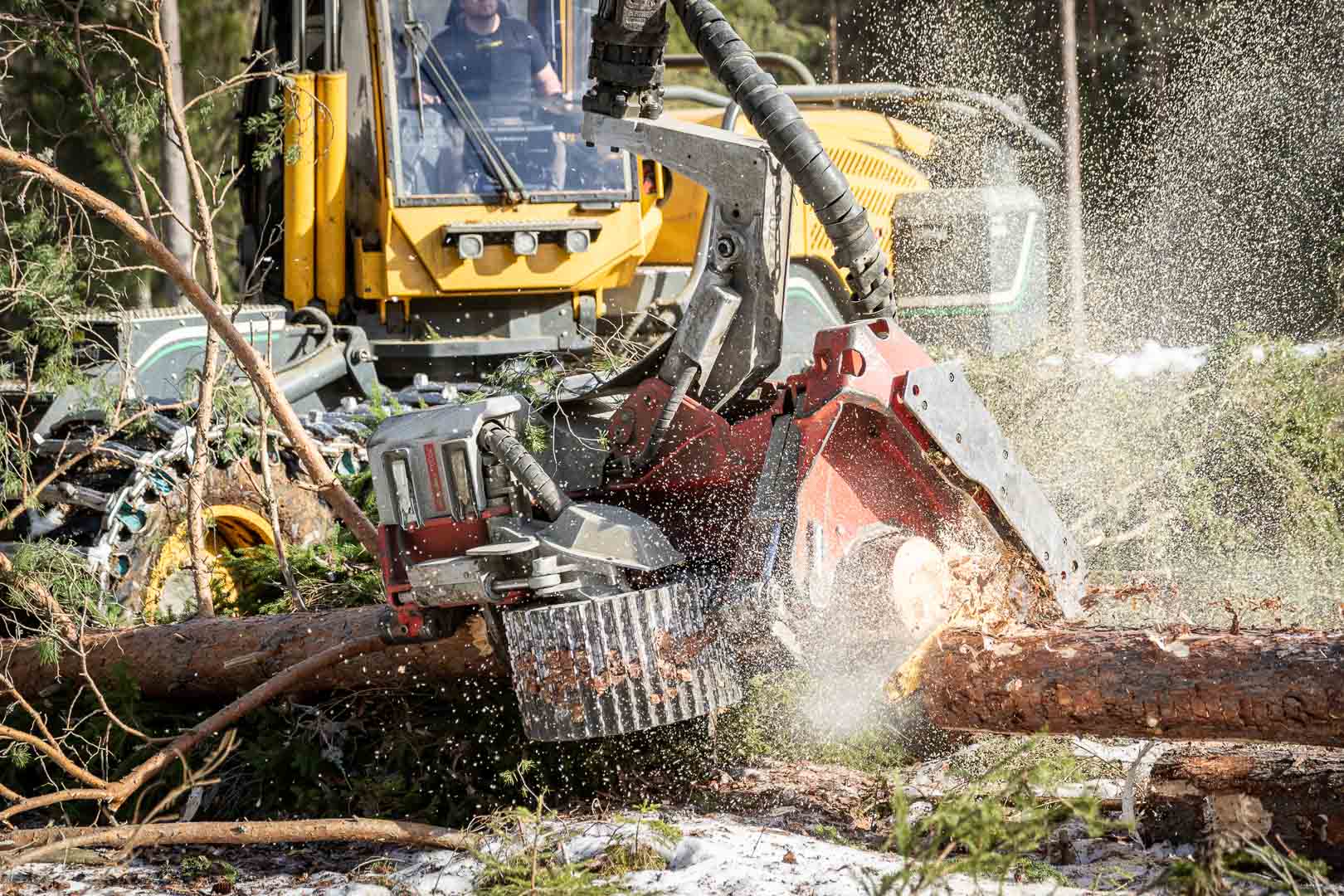

Log Max 7000C is a large head for the really heavy timber. The head combines high power and high speed, and performs very well in heavy and branchy trunks.
Variable displacement feed roller motors provide fast speed in smaller wood and automatically regulate to provide more power in tougher limbed trees. Well placed guards and heavy covers protect internal components and hoses from damage.
High performance saw hydraulics provide full flow to the bottom saw for fast cutting in all timber sizes.
The Log Max patended knife control system increases productivity by minimizing feed friction. Unique compound curve delimbing knife profile provides outstanding stem coverage and increased log quality.
|
| Technical specifications |
Weight
Standard configuration * |
1681 kg
|
| * Incl. rotator, Steel feed rollers and damped protection plate |
Felling/Cutting
Max cut capacity, std/opt
Sound effect level
LWA |
65/69/72/75 cm
110 dB(A) |
Feeding
|
Calc. feed force
Calc. feed speed
|
42,1/36,3 kN
5,2/3,9 m/s |
Optional equipment

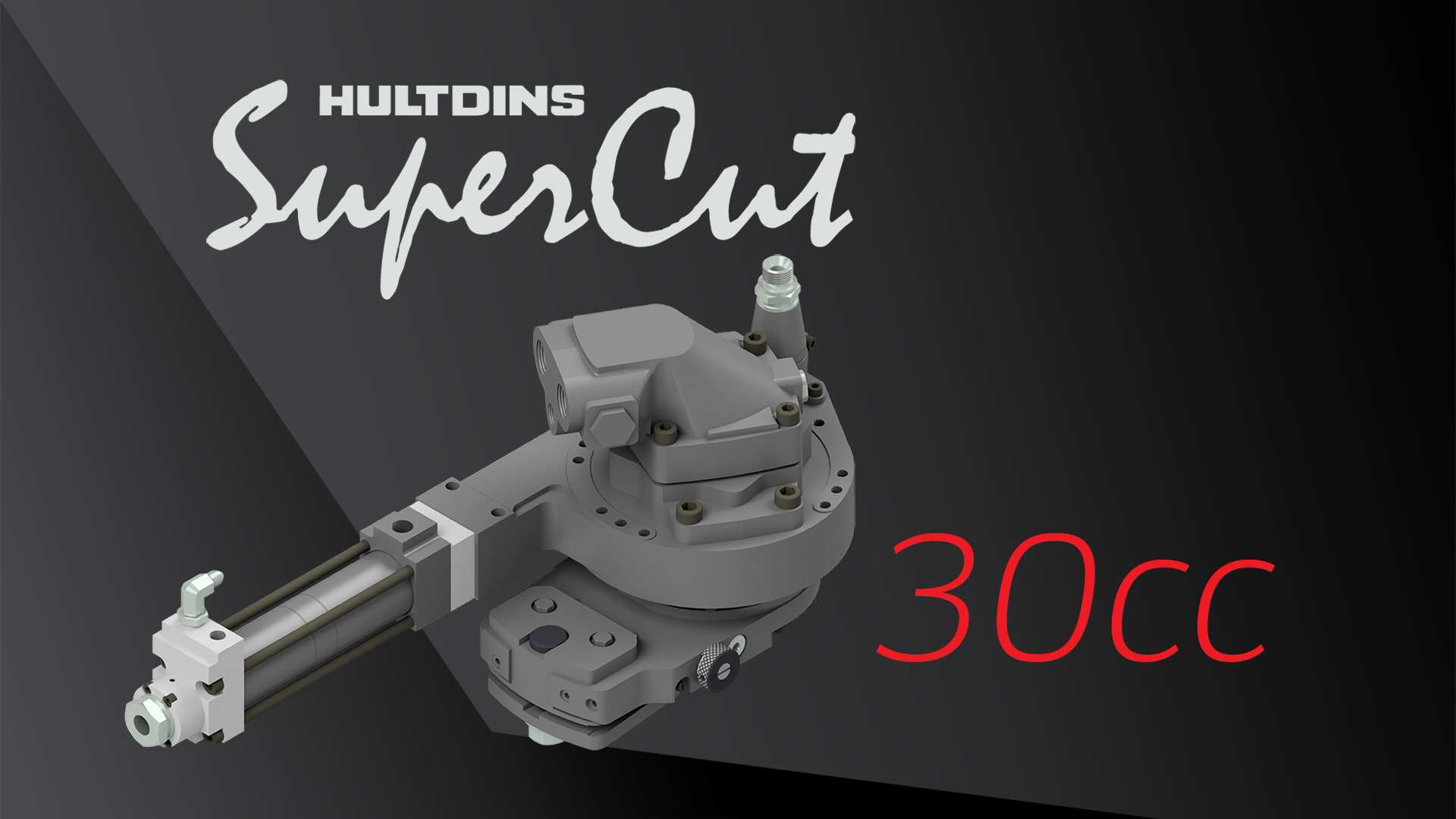

Automatic Chain Tensioner (Hultdins)
Color Marking
Eucalyptus Equipment
Field repair kit
Find end sensor
Hydraulic upper knife
Processor Knives
Snow Cover
|
Feed roller options
V-Steel
Steel
Eucalyptus
|
|
|
|
|
|
|
