For the most XTreme operations!

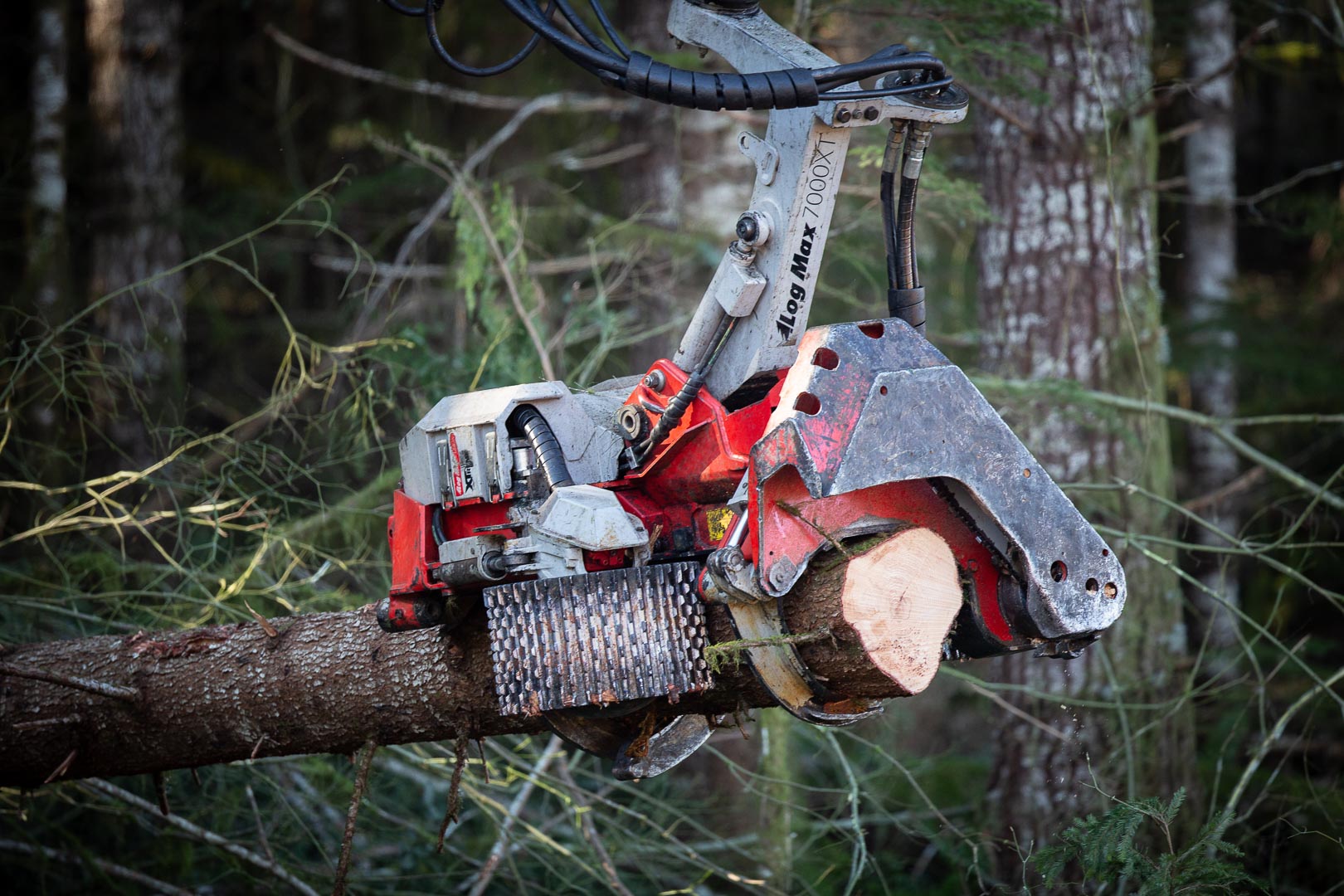

The New XTreme Series from Log Max are heavy-duty Harvesting Heads specifically designed for tracked Carriers.
With a choice of Harvester or dedicated Processor configuration, the Log Max XTreme Series meets the demands of the toughest operations. Log Max 7000XT is available with two different feed motors: The standard motor has variable displacement axial piston motors, 660-1320 cc and the optional has fixed diplacement motors, 1259 cc.
The XTreme Series has been developed to provide the logging industry with a productive and durable head for the most XTreme applications and to produce wood at the lowest cost per tonne possible.
Harvester:
The Log Max 7000XT Harvester configuration is built for extreme CTL operations. A durable Harvesting head available with or without Top saw.
Processor:
The Processor configuration of Log Max 7000XT is equiped with a Top saw plus a processor link and processor knives.
|
Harvester - Technical specifications
|
Weight
Excl. Top saw *
Inkl. Top saw ** |
1902 kg
2173 kg |
* Incl. rotator and Steel rollers
** Incl. rotator and Steel rollers
|
Felling/Cutting
Max cut capacity, std/opt |
65/80 cm |
Feeding
|
Calc. feed force, std/opt
Calc. feed speed, std/opt
|
45/42,6 kN
5,2/4,1 m/s |
Optional equipment
Field repair kit
Find end sensor
Processor Knives
Snow Cover
Top Saw
|
Feed roller options
Rubber
Steel
Eucalyptus |
|
|
|
|
|
Processor - Technical specifications
|
Weight
Processor with Top saw *
|
2228 kg
|
| * Incl. rotator and Steel rollers |
Felling/Cutting
Max cut capacity, std/opt |
65/80 cm |
Feeding
|
Calc. feed force, std/opt
Calc. feed speed, std/opt
|
45/42,6 kN
5,2/4,1 m/s |
Optional equipment
Field repair kit
Find end sensor
Processor Knives
Snow Cover
Top Saw
|
Feed roller options
Rubber
Steel
Eucalyptus
|
|
|
|
|
|
