Log Max E6

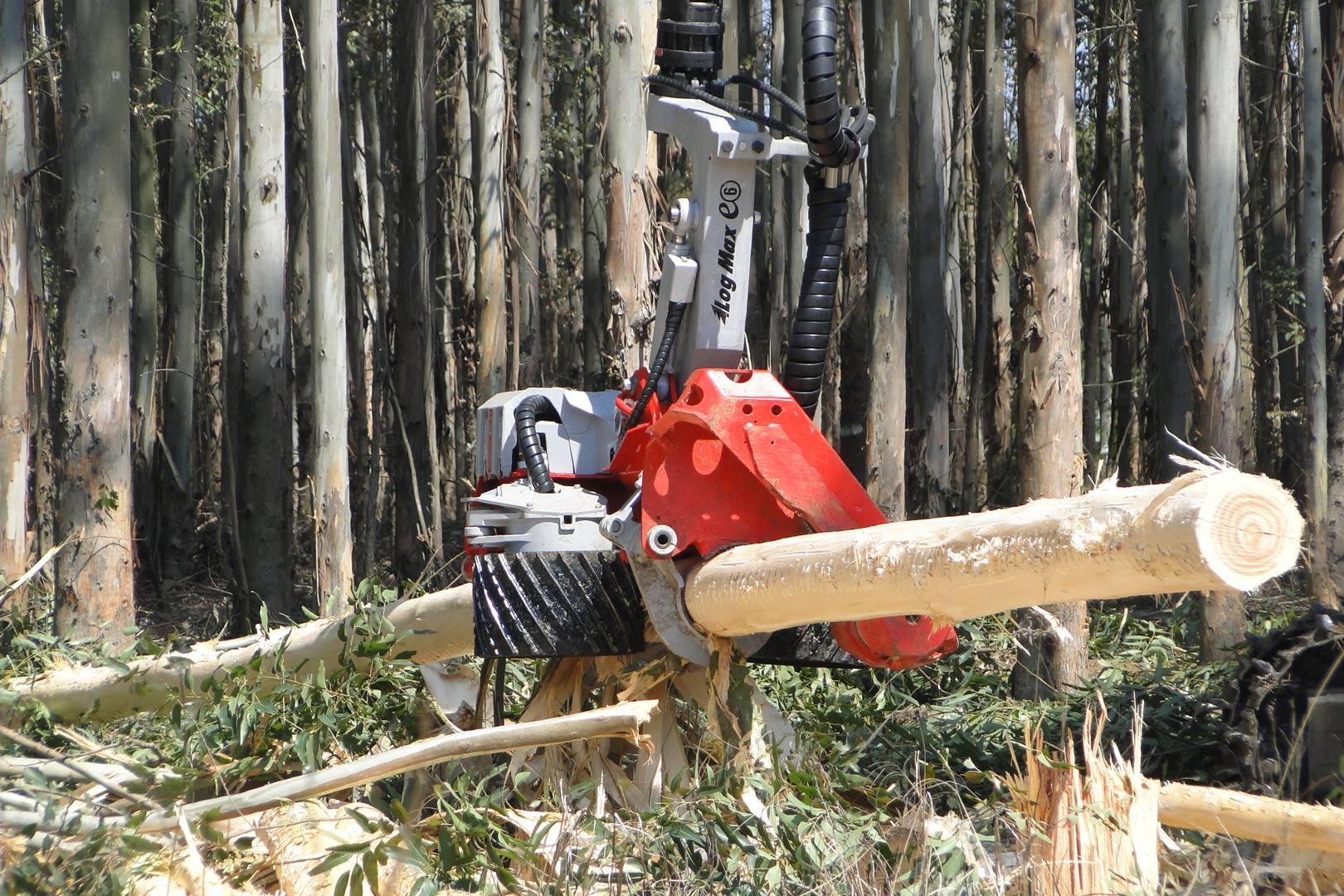

The Log Max E6 head is the result of team work and Log Max experience. This head has been developed to meet the demands of eucalyptus harvesting using five delimbing knives to debark the log.



Log Max E6 is a brand new head specially developed for Eucalyptus harvesting.



With angled feed rollers arms the debarking process on Log Max E6 gets optimized. The frame has an idle support roller in its center to minimize friction. In the bottom part of the frame a fixed delimbing knife has been welded in. This knife has a contour optimized for Ø20 - 260mm (0.8’’- 10.24’’) trees. Diameter measuring is available as an optional equipment.

The Log Max patented knife control system increases productivity by minimizing feed friction. The unique compound curve delimbing knife profile provides outstanding stem coverage and increased log quality.

The new Log Max E6 is built with well tested components used in Log Max’s other harvesting heads. This makes sure that the Log Max E6 holds the same excellent quality and productivity as all other Log Max products.


Harvesting key figures

  • Most productive range : 4 to 26 cm
  • Maximum cutting diameter : 43/61.5 cm
  • Minimum delimbing diameter : 2 cm
  • carriers carriers carriers
  • 21-25 tons 18-20 tons 170-220 kNm
  • cut stump

DIMENSIONS & WEIGHT

  • Max width arms open 1704 mm
  • Min width with arms closed 1278 mm
  • Height to felling link 1927 mm
  • Standard configuration1 1569 kg
  • 1) Incl: Eucalyptus rollers

FELLING/CUTTING - SAW TYPE

Hydraulically driven chain saw with pressure controlled feed force.
Chain oil tank in frame with 36 liters capacity.

  • Saw type Saw 98B/98XL
  • Saw motor 19 cc
  • Saw chain 0.404 pitch
  • Bar length, std/opt 64/75 cm
  • Maximum cut capacity std/opt 43/61.5 cm
Optional saw:
  • Saw type Hultdins Supercut
  • Saw motor 19 cc
  • Saw chain 0.404 pitch
  • Bar length, std/opt 64/75 cm
  • Maximum cut capacity std/opt 61,5 cm

FEEDING

  • Feed roller diameter, Eucalyptus 538 mm
  • Calculated feed force1 std 22.3 kN
  • Calculated feed speed2 5.9 m/sec
  • Maximum roller opening 630/560 mm
  • Minimum roller opening 23/13 mm
  • 1) calculated at 300 bar pressure
  • 2) calculated at 280 l/min flow

DELIMBING

Five movable compound curved knives and one adjustable upper knife with patented positioning, one pass debarking/feed speed.

  • Max delimbing knife opening 611 mm
  • Max full coverage delimbimg diameter1 260 mm
  • Min full coverage delimbing diameter 20 mm

HYDRAULICS

  • Maximum pressure 300 bar
  • Maximum flow 280 l/min
Min. requirements for acceptable performance :
  • Flow 200 l/min

CONTROL SYSTSEM

Log Mate 500 with diameter and length measuring: Full system diagnosis, value bucking, StanForD 2010, multi-stemming report, powerful production reporting...

Interfaces : Log Max heads can be seamlessly installed on any machine running an other control system. These powerful and easy to implement interfaces are available for all major manufacturers. (John Deere, Rottne, Komatsu...)

ROTATOR

  • Indexator AV17S
  • Indexator H172

FEED ROLLERS

eucalyptus rollers

Eucalyptus

Log Max Eucalyptus rollers have angled edges for debarking as eucalyptus demands complete debarking when felling.

OPTIONAL CHAINSAW

  • cut stump

Hultdins Supercut

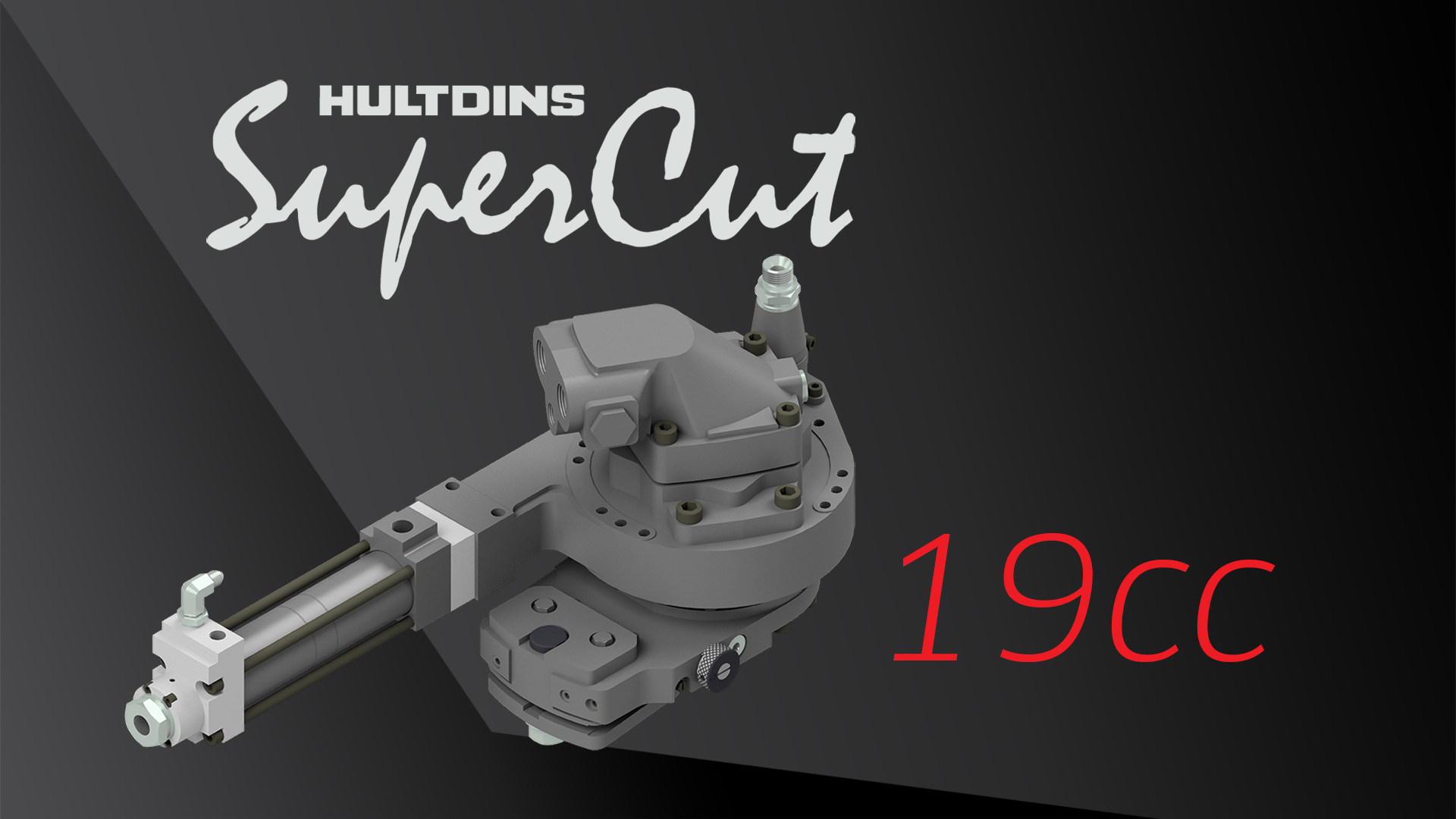

The Hultdins Supercut is a compact and adaptable saw unit that combines low weight with high cutting performance. This saw features automatic chain tensioning, proportional chain lubrication and pulse cut control. Be assured to run a high performance dependable saw unit with a long life expectancy.

EXTRA EQUIPMENTS

  • Hydraulic upper knife
  • Field repair kit
  • Diameter measuring
